1969 Chevy El Camino SILVER KYO34419T2

The Fazer now has a super sweet Chevy El Camino body… sweeet!

KYO34419T2

1/10 Fazer 1969 Chevy El Camino SS396, ReadySet

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can't be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition to the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

TECHNICAL DATA
*Length: Approx 46 1 mm Width: Approx 195 mm Height: 132 mm *Wheelbase: 2 74 mm *Tread:1 67 mm(F)/ 1 67 mm(R)
Tire Width : 2 7.7 mm *Tire Diameter : 6 4 mm *Weight Approx 1 65 0 g
*Gear Ratio: 6. 5 4 :1 * Top Speed : 40km / h Run Time : 15 min
READYSET CONTENTS
*Factory assembled chassis with graphics S ervo (KS 4081 04 WP ) SYNCRO KT 2 31P transmitter and KR 331 Receiver unit Kyosho KA060 91W ESC and G14L motor
REQUIRED FOR OPERATION
4 xAA battery for Transmitter 7.2V 8.4V NiMh or 7.4 Li Po battery and charger

Features:

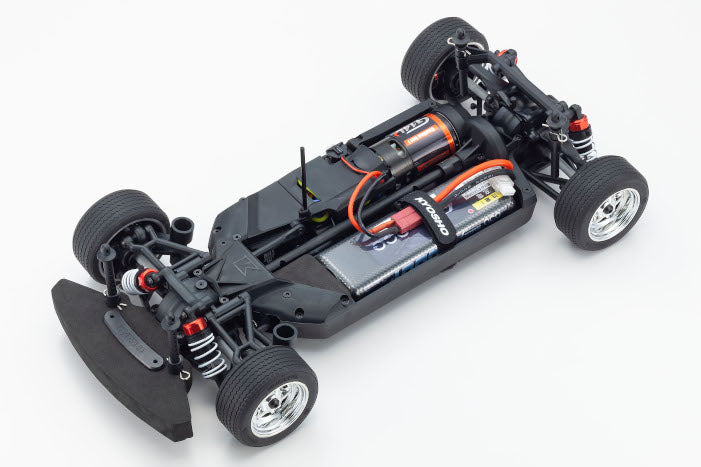

• Fazer Mk2 Chassis FZ02L. Simple and efficient shaft driven 4WD design with improved performance. Light weight and low CG bathtub style design made of durable glass reinforced 66 nylon material.
• Licensed 1969 Chevy El Camino body. Plastic chrome plated grill and headlights. Tinted clear windows. LED ready with light buckets. ULTRA SCALE badges.
• Scale wheel design with brake rotor parts. Vintage style high grip tires and chrome plated rims.
• Improved steering and double wishbone suspension design for superior handling and damping characteristics. Plastic made of durable glass reinforced nylon material. Adjustable caster angle (3 settings).
• 12mm big bore shocks.
• Reliable shaft driven 4WD drivetrain design with slipper clutch.
• 2 bevel gear type diff system on front and rear.
• Easy gear mesh system. Stock pinion is 32T.
• Powerful Kyosho 550 size 14T brushed motor.
• Kyosho Speed House KA060 91W water proof brushed 60A ESC with Super plug connectors. 2S Li Po compatible.
• High response, high torque KS 4081 04 WP waterproof steering servo
