PowerHD

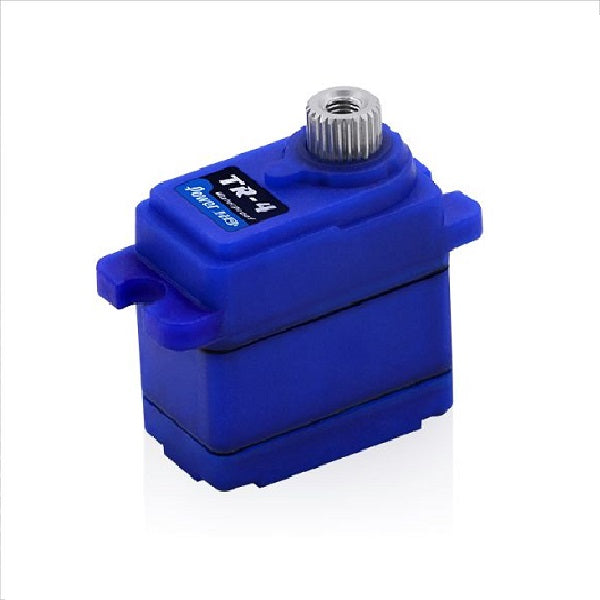

TR-4 Mini Waterproof Servo 2.6KG 0.10sec@7.4V
TR-4 Mini Waterproof Servo 2.6KG 0.10sec@7.4V
Regular price
$39.99 CAD
Regular price
Sale price
$39.99 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
This servo is the best replacement for the Micro servos commonly found in 1/16 revo/slash , trx4 shifter servos and various other traxxas rigs. Metal gears, waterproof and more durable.. its the bees knees
Mini waterproof servo TR-4, specific for Traxxas TRX-4. Having compatibility with high voltage 6V-8.4V, at 7.4V input the servo pulls up to 2.6kg-cm of torque at a speed of down to 0.10s. A long 35cm receiver wire and mini size of 22.5 x 12.5 x 24.0 mm ensures the servo is a direct fit in Traxxas TRX-4. The servo TR-4 comes with 25T metal spline and special gaskets make it waterproof for go-everywhere capabilities.
| Specifications | |
|---|---|
| Torque(4.8V): | 1.8 kg-cm (25.0 oz/in) |
| Torque(6.0V): | 2.2 kg-cm (30.6 oz/in) |
| Torque(7.4V): | 2.6 kg-cm (36.1 oz/in) |
| Speed: | 0.15 sec (4.8V) 0.12 sec (6.0V) 0.10 sec (7.4V) |
| Operating Voltage: | 4.8 ~ 7.4 DC Volts |
| Spline: | 25T |
| Connector Wire Length: | 350mm / 13.75" |
| Case Colour: | Blue |
| Weight: | 16.0g (0.56 oz) |
| Gear Type: | Copper & Aluminum |
| Operating Temperature: | -20°C ~ 60°C |
| Working frequency: | 1520 micro seconds / 50hz |
| Size: | 22.5x12.5x24.0mm (0.89x0.49x0.94") |
