rc4wd

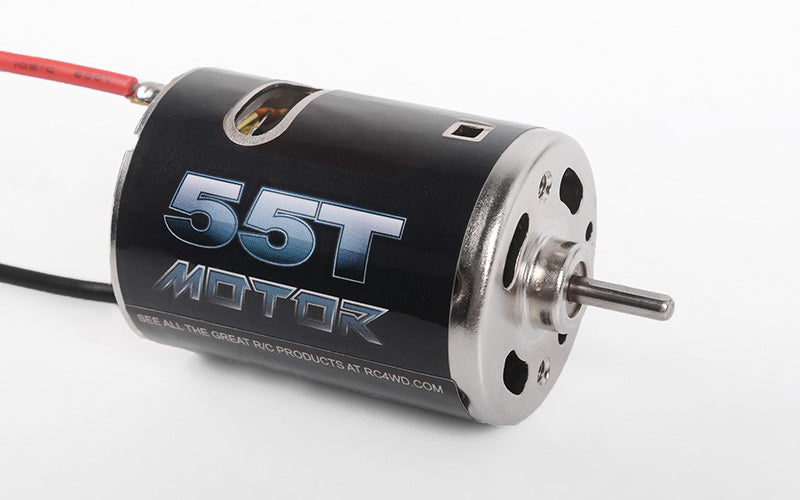

RC4WD 540 Crawler Brushed Motor 55 Turn RC4ZE0003

RC4WD 540 Crawler Brushed Motor 55 Turn RC4ZE0003

Regular price $24.99 CAD
Regular price Sale price $24.99 CAD
Sale Sold out
Shipping calculated at checkout.

Custom made to fit all popular trucks such as Bully, AX10, and Trail Finder!

Specifications:
Custom made 540 Steel case
Chrome plated case
Build in capacitor for minimizing glitch
High torque magnet and rotor
Small footprint (50mm long)
Tuned for Rock Climbing and Scale Driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Output Shaft Length: 0.43in / 11mm
Output Shaft: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V

Performance Specs:
(At no load) RPM @ 7.2V : 8000 (+/-10%), .75Amp Current
(Max Efficiency) RPM @ 7.2V : 6800 (+/-10%), 3.35Amp Current
Designed oprating temperature range: -30C to +80C
Motor end play : .50mm max
Noise level: < 60db
