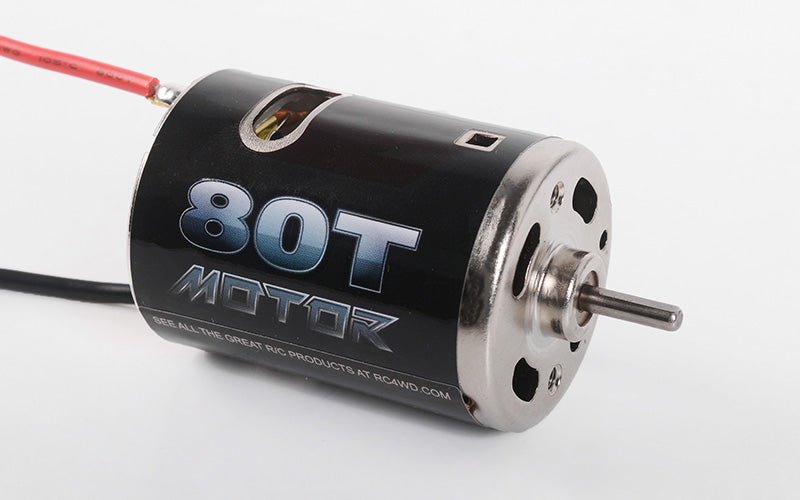

RC4WD 540 Crawler Brushed Motor 80 Turn RC4ZE0001
RC4WD 540 Crawler Brushed Motor 80 Turn RC4ZE0001
Regular price
$24.99 CAD
Regular price
Sale price
$24.99 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Custom made to fit all popular trucks such as Bully, AX10, Trail Finder!
Specifications:
Custom made 540 Steel case
Chrome plated case
Build in capacitor for minimizing glitch
High torque magnet and rotor
Small footprint (50mm long)
Tuned for rock climbing and Scale driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Output Shaft Length: 0.43in / 11mm
Output Shaft: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V
Performance Specs:
(At no load) RPM @ 7.2V : 5500 (+/-10%), .45Amp Current
(Max Efficiency) RPM @ 7.2V : 4450 (+/-10%), 1.38Amp Current
Designed Oprating temperature Range: -30C to +80C
Motor End play : .50mm max
Noise level: < 60db
