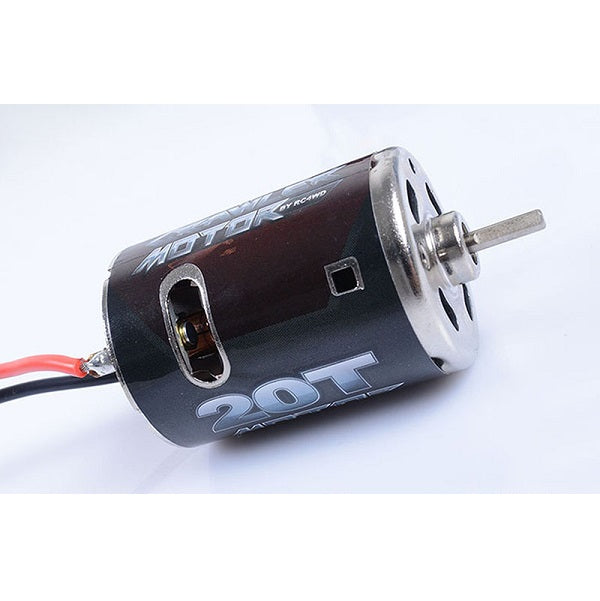

RC4WD 540 Crawler Brushed Motor 20T RC4ZE0065

RC4WD 540 Crawler Brushed Motor 20T RC4ZE0065

Regular price $24.99 CAD
Regular price Sale price $24.99 CAD
Sale Sold out
Shipping calculated at checkout.

Good quality bang for your buck motor, These motors work great for crawlers, scalers, bash rigs and custom projects

RC4ZE0065

540 Crawler Brushed Motor 20 Turn

Standard size 540 Brushed Motor that can be used in most popular RC trucks and cars.

Specifications:
Custom Made 540 Steel Case
Chrome Plated Case
Build in Capacitor for Minimizing Glitch
High Torque Magnet and Rotor
Small Footprint (50mm long)
Tuned for Rock Climbing and Scale Driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Length: 1.96in / 50mm
Output Shaft Length: 0.43in / 11mm
Output Shaft OD: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V
Weight: 5.5oz / 156g

Performance Specs:
(At No Load) RPM @ 7.2V : 20000 +/-10% , 2Amp Current
(Rated load) RPM @ 7.2V : 18400 +/-10%, 7.92Amp Current
Designed Operating Temperature Range: -10C to +60C
Shaft end play: 0.1mm to 0.5mm
Noise Level: < 78DB
