1/10 RC Motul Autech GT-R (TT-02) TAM58625 KIT

Super classic TT02 platform with Nissan GT-R bodyset

TAM58625

1/10 RC Motul Autech GT-R TT-02 Kit

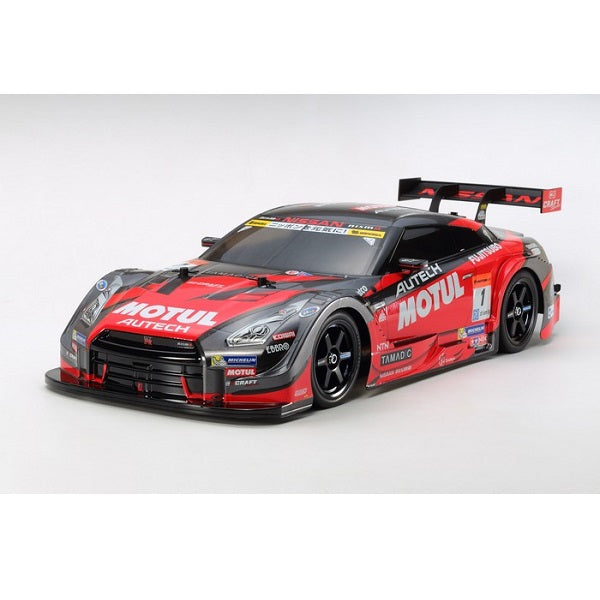

This R/C model assembly kit recreates the gun metal and red liveried Motul Autech GT-R that completed a magnificent brace of back-to-back championships with victory in the GT500 class of Super GT in 2015. The model has a highly realistic polycarbonate body and separate parts recreating the door mirrors and rear wing, as well as wing aerodynamic parts. Marking stickers are included to recreate the numerous sponsors and the red sections of the livery. The model is based upon the accessible and adaptable TT-02 chassis.

TT-02 Chassis:
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black 6-spoke wheels are paired with slick tires for a racy finish.

Gear Ratio: 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Type 540 Motor
Electronic Speed Controller (ESC) included.

Features:

• Bathtub-type Frame
• Shaft-Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• Wheelbase: 257mm
• Tire Width/Diameter: 27/67mm (Front & Rear)
• Length: 472mm, Width: 188mm, Height: 124mm
