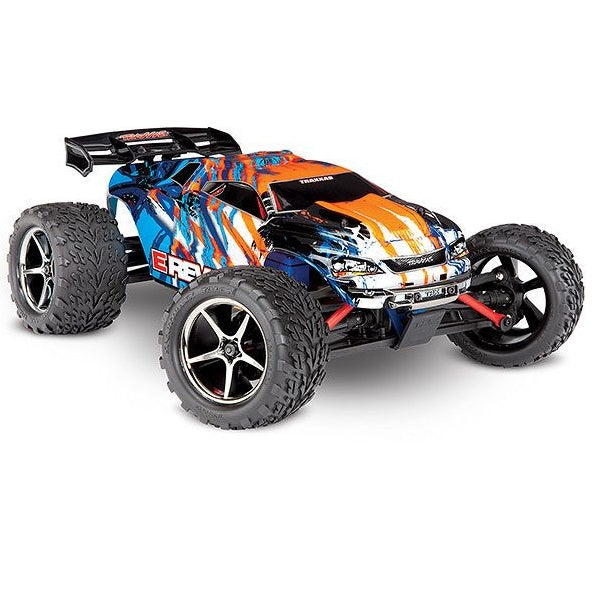

TRA71054 MINI E REVO 1/16 ORANGE
TRA71054 MINI E REVO 1/16 ORANGE
The mini Revo is the most rugged mini in the entire world… That’s right your heard it here first. Crazy long travel suspension combined with a 1/10 scale power system is bonkers on a mini rig like this. The mini Revo is capable, fun to drive and a local favorite
The 1/16 E-Revo is fully assembled with TQ 2.4 GHz radio system, Titan 550 motor, XL-2.5 electronic speed control, painted and decaled body, pre-glued tires, and detailed instructions. An iD-Equipped Traxxas Power Cell NiMH battery and 2-amp peak detecting DC fast charger are also included, making the 1/16 E-Revo truly Ready-To-Race. Traxxas backs the 1/16 E-Revo and all of our products with top-notch support that is second to none. Unmatched parts support allows the E-Revo to be serviced with parts and support from thousands of hobby dealers worldwide. Your investment is also protected by the Traxxas Lifetime Electronics Warranty. Traxxas goes the extra mile to ensure that your RC experience is easy and fun (and fast!).
Features:
- 2-amp Peak Detecting DC Fast Charger
- Traxxas Power Cell NiMH battery with iD
- TQ 2.4GHz radio system
- Revo suspension technology and integrated chassis design perfectly optimized for 1/16 scale
- Patented Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage
- XL-2.5 Waterproof Electronic Speed Control
- Innovative waterproof design
- LiPo and NiMH compatible with two-stage low-voltage detection
- Fully-proportional forward, reverse, and braking control
- Programmable with three drive profiles:
- Sport Mode - Fwd / Brake / Rev
- Race Mode - Fwd / Brake
- Patented Training Mode - 50% Fwd / Brake / 50% Rev
- EZ-Set push-button setup
- Multi-color LED
- Thermal shutdown protection
- Efficient, low-loss MOSFET design
- High-capacity heat sink
- Smooth, high-frequency operation
- Easy installation in Traxxas models
- Titan 12T Modified Motor
- Digital High-Torque Waterproof Micro Steering Servo (#2080)
- Waterproof, o-ring sealed receiver box
- Sealed, silicone-filled differentials - an industry first in 1/16 scale
- Torque-Control slipper clutch system
- Heavy-duty CV-style driveshafts
- Rubber-sealed ball bearings
- External gear cover with easy slipper access
- Extended-wheelbase rear suspension arms (+10 mm)
- Rocker-actuated shocks provide true progressive damping and spring rates
- Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
- Fiber-composite monocoque chassis
- Speed control and receiver are securely fastened to chassis
- Integrated battery compartments with intake and exit cooling vents
- Quick-release battery doors for fast pack changes
- Pre-glued Talon Tires with foam inserts
- Black-chrome Gemini wheels
Vehicle Specs | |
---|---|
Length: | 12.9 inches (328 mm) |
Front Track: | 9.4 inches (239 mm) |
Rear Track: | 9.4 inches (239 mm) |
Weight: | 44 ounces (1.24 kg) |
Height (overall): | 4.6 inches (117 mm) |
Wheelbase: | 7.9 inches (202 mm) |
Wheel Diameter | 2.0" (50.8 mm) |
Shock Length (front/rear): | 48 mm / 48 mm |
Front/Rear Tires (glued): | Talon 2.0" |
Front/Rear Wheels: | 2.0" Gemini (black-chrome) |
Electronic Speed Control: | Waterproof XL-2.5 ESC |
Motor (electric): | Titan 12T 550 |
Transmission: | Heavy-Duty Single Speed |
Gear Ratio (internal): | 5.04:1, (reversed input: 9.72:1) |
Overall Drive Ratio: | 15.75:1 (stock, out-of-box) |
Differential Type: | Hardened Steel Bevel, Sealed |
Gear Pitch: | 48-Pitch |
Chassis Structure/Material: | Molded Composite Nylon Monocoque |
Brake Type: | Electronic |
Drive System: | Shaft-Driven 4WD |
Steering: | Bellcrank |
Transmitter: | TQ 2.4GHz Radio |
Receiver: | #6519 3-Channel Micro |
Top Speed: | 20+mph |
Skill Level: | 1 |
Battery Tray Dimensions: | 89 mm x 35.5 mm x 20 mm |
Included Batteries: | 6-cell Power Cell iD NiMH battery with 2-amp Peak Detecting DC Charger |
Required Batteries: | 4 "AA" (transmitter) |
ESC Specs | |
Input Voltage: | 4-7 Cells NiMH, 2 Cells (2S) LiPo |
Case Size: | 26.5 mm W x 46.5 mm D x 22 mm H |
Weight: | 33 grams |
Motor Limit: | 10-turns |
On Resistance (@Trans): | 0.008 Ohms |
Reverse Delay: | None |
BEC Voltage: | 6.0V DC |
Power Wire: | 16 Gauge / 40 mm |
Input Harness Wire: | 26 Gauge / 130 mm |
Motor Wires: | 26 Gauge / 130 mm |
Transistor Type: | MOSFET |
Low Voltage Detection: | 2-Stage indicators, switchable (on and off) |
PWM Frequency: | 2300 Hz |
Thermal Protection: | Thermal shutdown |
Profile selection: |
Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode: 50% FWD, 100% brakes, 50% REV |
Single-button setup: | Yes, Traxxas EZ-Set |
