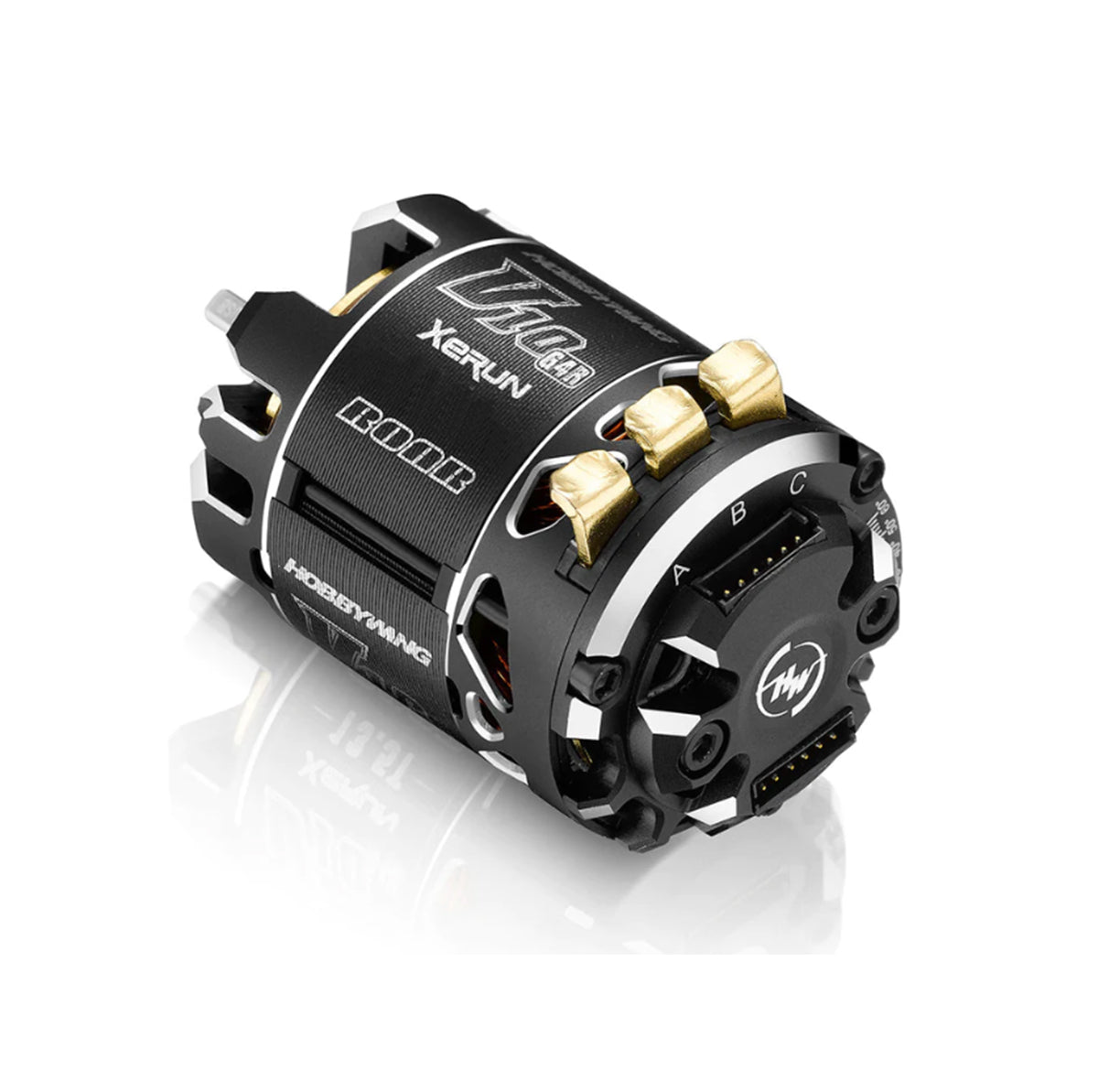

Xerun V10 G4R 17.5T Motor

HWI30401745

THIS IS A SPECIAL ORDER MOTOR.
ONCE PAYMENT IS RECEIVED, WE WILL ORDER IT TO OUR STORE. ETA IS 2 WEEKS

WHEN IT ARRIVES HERE WE WILL CONTACT YOU TO CONFIRM SHIPPING INFORMATION

Xerun V10 G4R 17.5T Motor

• Excellent performance, specially designed for 1/10 -1/12 STOCK racing. Designed to pair with HOBBYWING XR10 Stock Spec G2 ESC
• The innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation area and the rear end of the motor is a big opening structure to further improve the heat dissipation effect.
• Dual sensor interface design to meet various wiring/layout requirements.
• The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.
• The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
• The use of high-performance stator core, 220 degrees C high-temperature-resistant enameled wire, high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding

SPECS:

• KV(No-load): 3150KV
• LiPos: 1-2S
• Resistance: 0.0354
• No-load Current(A): 4.6A
• Max. Output Power (W): 213W
• Current @Max. Output Power(A): 49.4A
• Diameter/Length(mm): O=35.8mm(1.41in), L=51.3mm(2.02in)
• Shaft Diameter/Length(mm): O=3.175mm(0.125in), L=13.9mm(0.55in)
