XV-02/TT-02 Oil Gear Diff Unit

tam22049

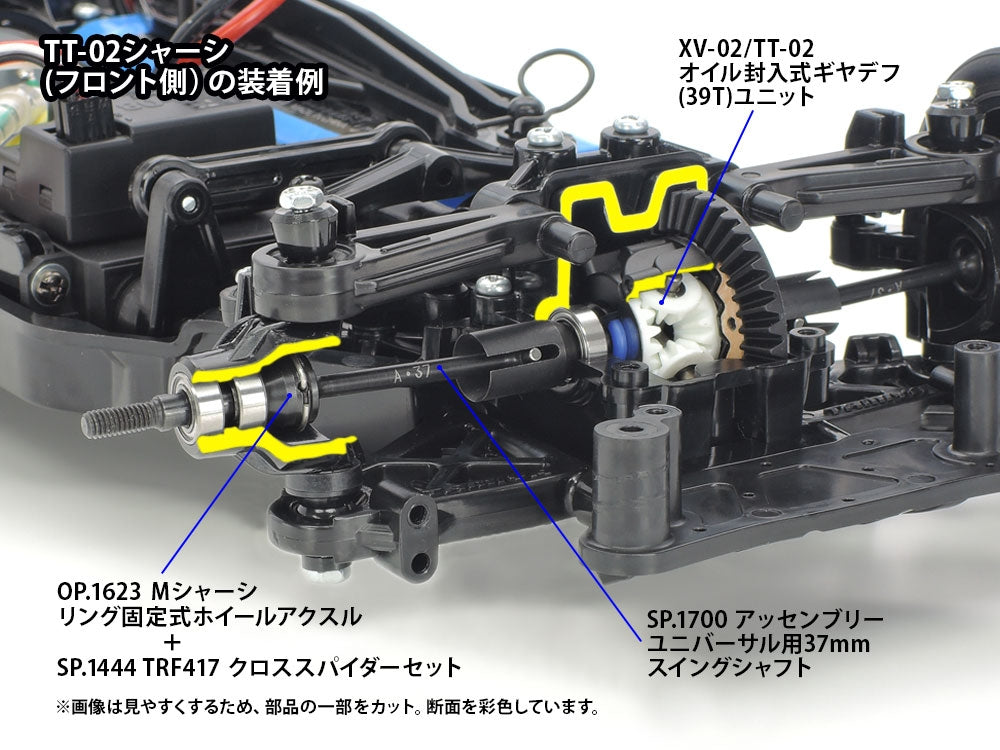

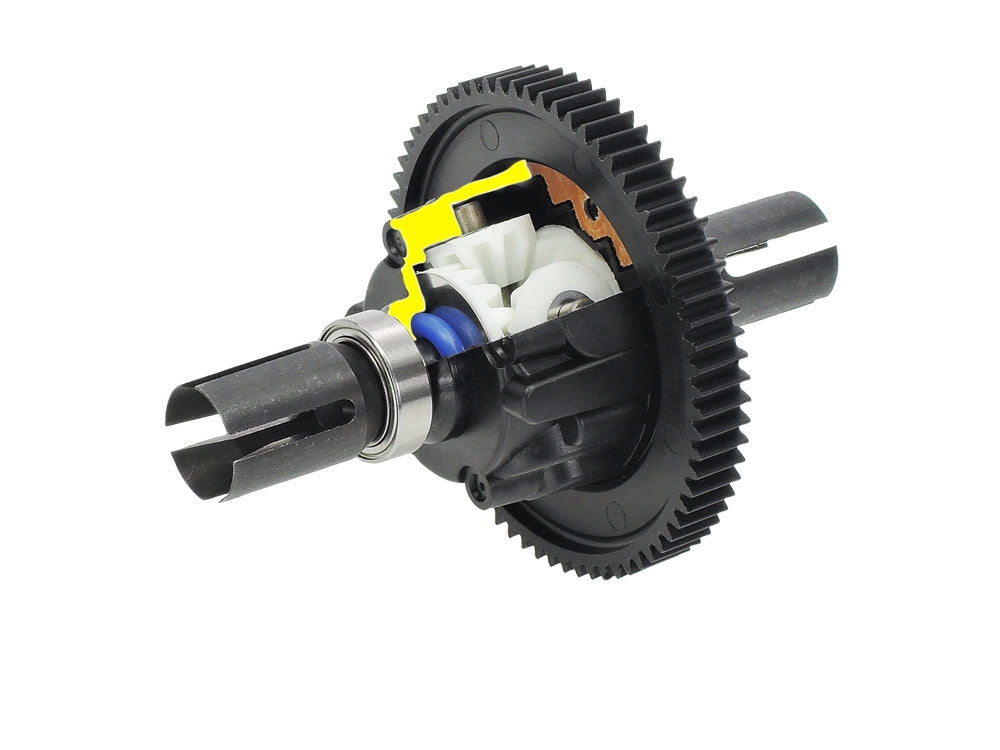

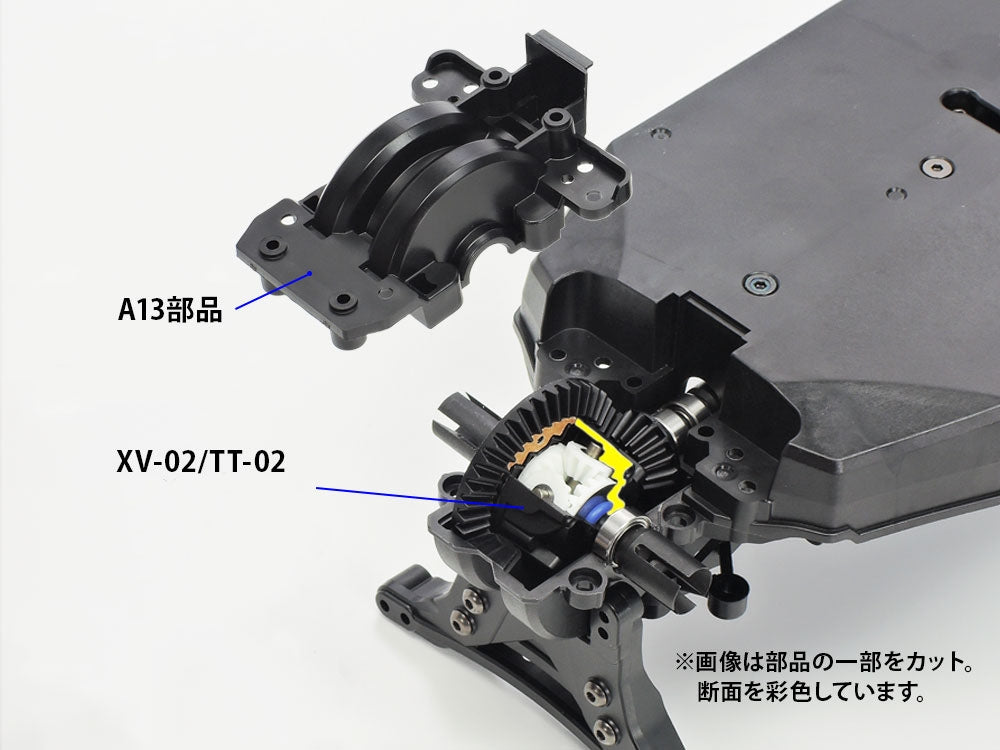

This is a new gear differential unit for use on the XV-02 and TT-02 chassis. When using it on the TT-02 chassis, it allows you to tune the differential action, for the front and rear, with the use of different viscosity oils. When using it on the XV-02, you can use it not only for the front and rear diffs, but also as a center oil-filled diff unit, which will give you even more tuning options! When using as a center oil-filled diff unit, on the XV-02 chassis, make sure to use with Item 22050 (06 Module Spur Gear 70T).

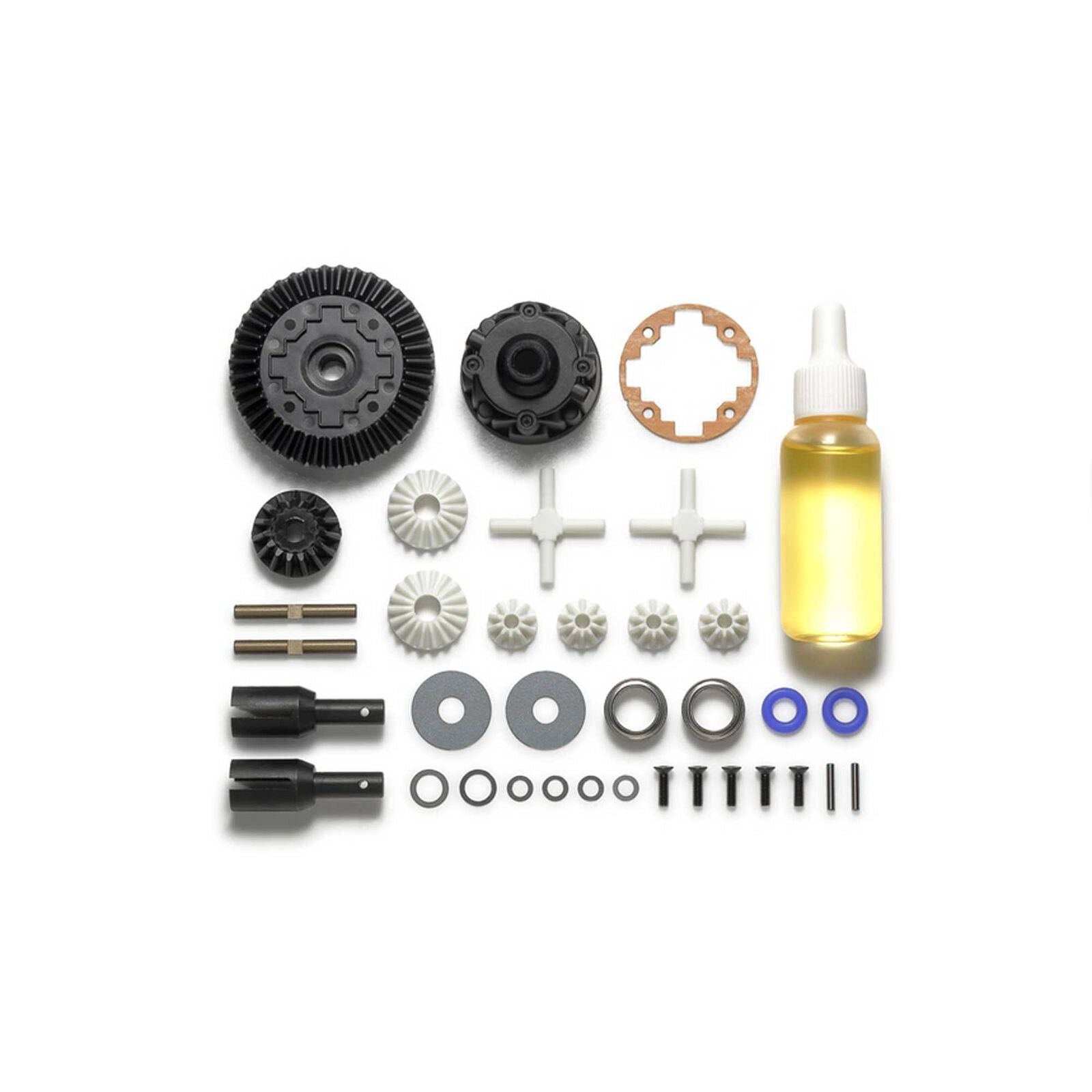

• Differential Joints x2 • Gear Differential Ring Gear (39T) x1 • Bevel Pinion Gear (for 39T gear) x1 • Differential Case x1 • Gasket x1 • GV Gears x2 • 2.8x23.4mm Cross Shafts x2 • 2x8mm Countersunk Hex Head Screws x4 • 5mm O-Rings x2 • 5x15.2x0.2mm Shims x2 • 5x7x0.1mm Shims x2 • 3x5x0.1mm Shims x4 • 1280 Ball Bearings x2 • Silicone Oil #3000 • Compatible with XV-02 and TT-02 chassis cars.
